TrueOak Lift & Slide

Slide Into Luxury

Where durability meets a seamless glide.

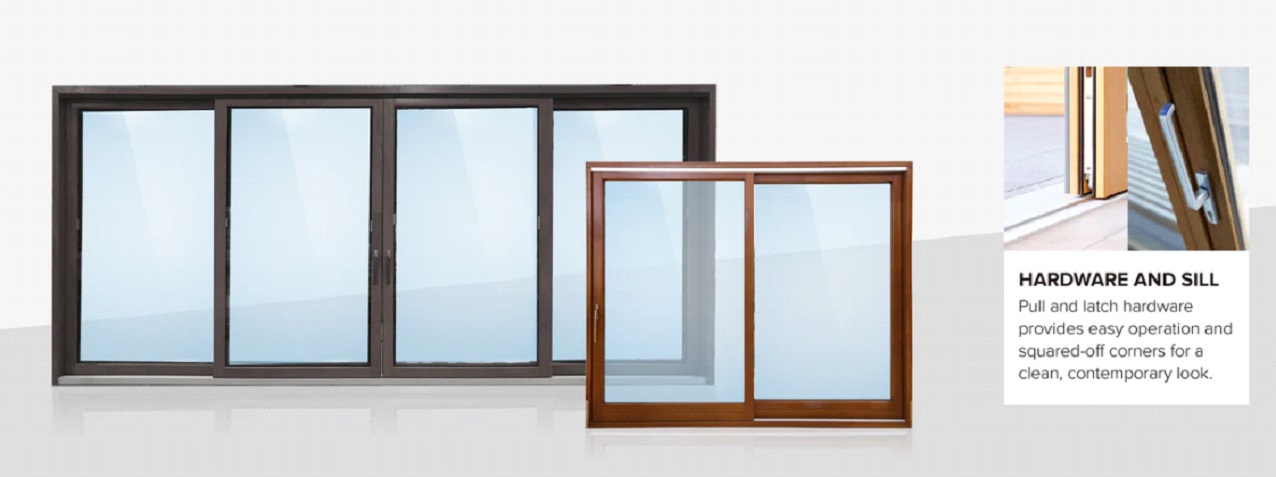

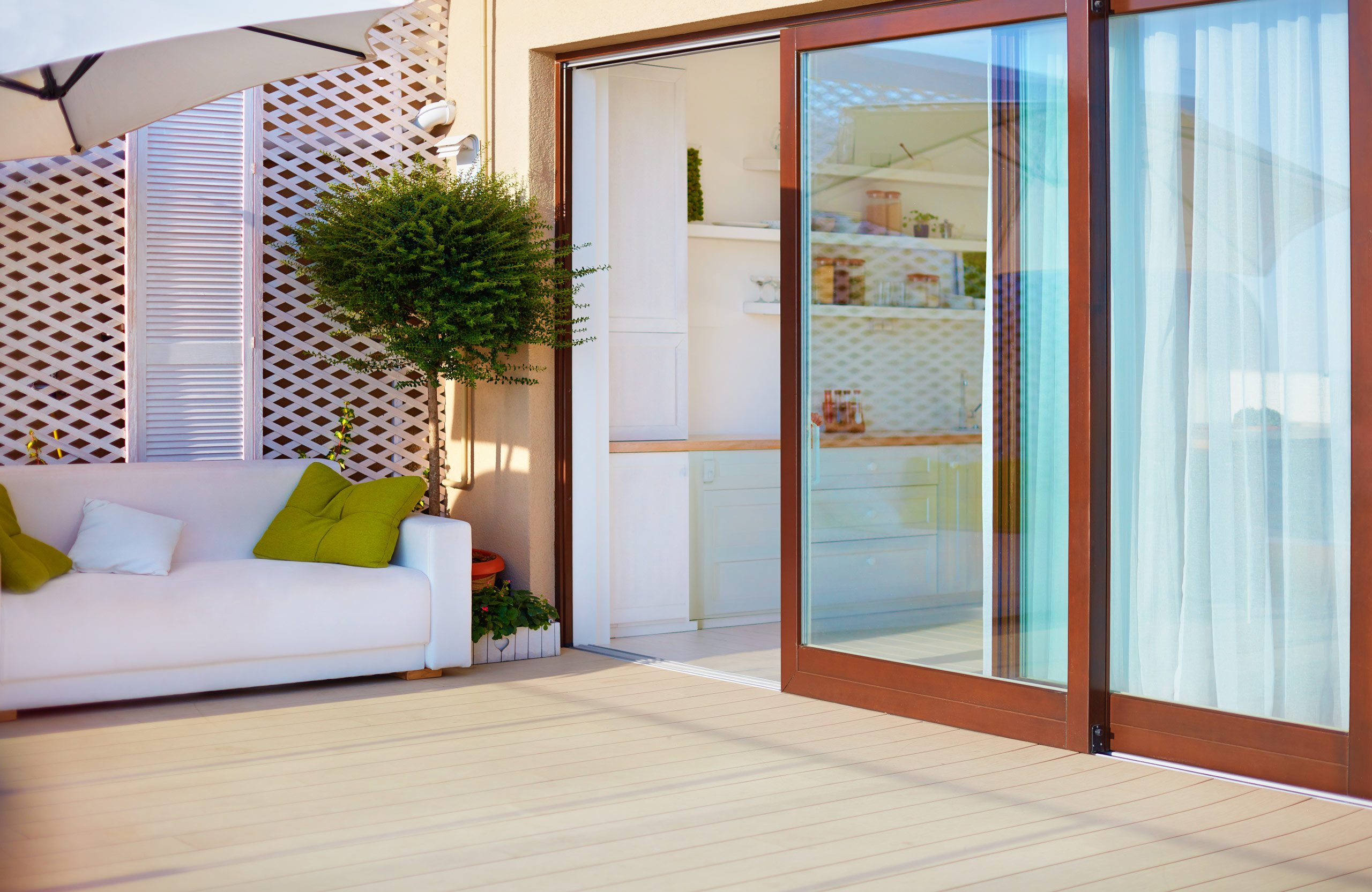

The Win-Gate TrueOak Series Lift Sliding doors are created for smooth operation, performance, and amazing durability. Our tough Performance Sill withstands traffic and seasonal changes, contributing to both the door’s energy efficiency and incredibly smooth operation. The contemporary 3 inch stiles and rails maximize your view, while the multi-point lock system ensures a tight seal and security from top to bottom.

Features

  • Any RAL Classic Powder Coat Color, any Sherwin Williams color, and select stain colors

  • Availability To Match Colors to Other Materials

  • German Components

  • German Handles

  • Warm Edge Spacers

  • Argon Gas Filled Tempered Glass (Dual or Triple Glazed)

  • Low-E Technology

  • 20 Year Transferable Warranty

  • 5 Layer Zero Damage Packaging

  • Integrated Drainage
  • Available For SDL’s or Grids Between The Glass
  • Available as single color or 2-tone (Exterior/Interior)

Performance

Model TrueOak 217s Lift and Slide

Glazing Options: Double-pane Triple-pane
  U-Value SHGC U-Value SHGC
Energy Ratings: 0.38 0.21 0.33 0.19

If your local code requests better ratings, we have different glass specifications to meet the requirement.

Frame: Aluminum w/ Thermal Break, 6060-T66 Profile

≥1.8mm Thickness, 3-3/4″Jamb Depth

Finish: Powder Coating-20 Years Warranty

Glass: ◆Tempered Safety Glass

             ◆Ultra Clear Glass

             ◆Triple-pane (1/4″ TG+1/2″ Air Space+1/4″ TG+1/2″ Air Space+1/4″ TG), Double-                     pane Optional

             ◆Argon Fill

             ◆Double-silver LowE Coating

             ◆Warm-edge Spacer

Hardware: German Brand-Siegenia, Concealed Hinges,

Multi-point Locking System, Hoppe Handle

Weather Seals: Three layers of EPDM Weather Stripping

Screen Options: Retractable Screen

Installation: New or Replacement

Functionality:  Lift and Slide Door

Grids: No Grids, GBG, SDL or Custom Grilles Optional

Explore How TrueOak Fits Your Design

Our team can help you compare series options and determine the best fit for your project.
