TrueOak Narrow Frame Outswing Window

Where History Meets Innovation

Classic Sightlines and Cutting-Edge Hardware

The Win-Gate TrueOak Outswing window provides exceptional performance with narrow, elegant sightlines that reference the aesthetic of historic steel sash windows. Designed for both retrofit and new construction, the TrueOak Outswing is suitable for both commercial and residential applications. This window meets and exceeds modern requirements through the use of structural glazing and European-style multipoint hardware. These features ensure superior air, water, thermal, and acoustic performance.

Features

  • Any RAL Classic Powder Coat Color, any Sherwin Williams color, and select stain colors

  • Availability To Match Colors to Other Materials

  • Narrower Bezels

  • German Components

  • Warm Edge Spacers

  • Argon Gas Filled Tempered Glass

  • Low-E Technology

  • 20 Year Transferable Warranty

  • 5 Layer Zero Damage Packaging

  • Integrated Drainage
  • Available For SDL’s or Grids Between The Glass
  • Available as single color or 2-tone (Exterior/Interior)

Performance

Model TrueOak e95s

Glazing Options: Double-pane Triple-pane
Energy Ratings: U-Value SHGC U-Value SHGC
Window Wall 0.33 0.22 0.27 0.20

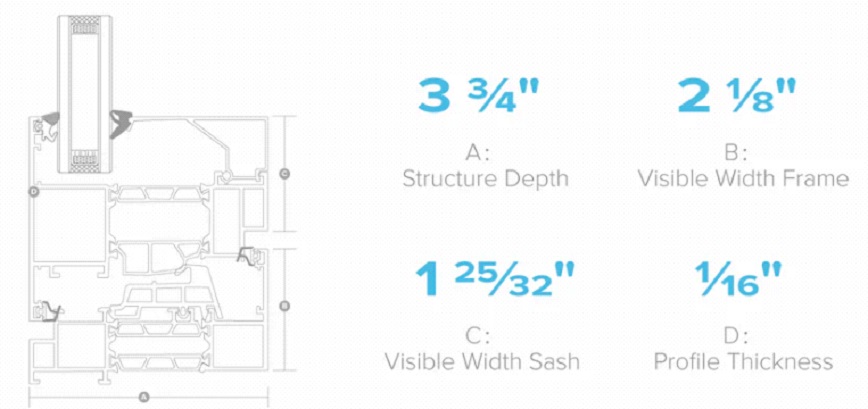

Frame: Aluminum w/ Thermal Break, 6060-T66 Profile,

≥2.0mm Thickness, 4-5/16″ Jamb Depth

Finish: Anodizing, Powder Coating and PVDF Optional

Glass: ◆Tempered Safety Glass

             ◆Ultra Clear Glass

             ◆Double-pane (1/4″ TG+1/2″ Air Space+1/4″ TG)

             ◆Argon Fill

             ◆Double-silver LowE Coating

             ◆Warm-edge Spacer

Hardware: Continuous Hinge, Pull Handle, Lockset,

Top-mounted Door Closer

Weather Seals: EPDM Gasket and Brush Seal

Installation: New or Replacement

Additional Options:  Panic Bar, Bottom Auto Drop Seal, Electric Strike, integrated blinds

Grids: No Grids, GBG, SDL or Custom Grilles Optional

Explore How TrueOak Fits Your Design

Our team can help you compare series options and determine the best fit for your project.
