TrueOak Narrow Frame Tilt & Turn Window

Effortlessly Minimal

Refined sightlines for refined spaces.

The Win-Gate TrueOak Narrow Frame Tilt & Turn Window delivers the perfect balance of sleek, minimal design and exceptional performance. Featuring ultra-slim sightlines that maximize your view and flood your space with natural light, these windows are engineered to tilt for secure ventilation or swing fully open for complete access. Built with the same premium oak interior, welded aluminum seams, and top-tier German hardware as the rest of the TrueOak series, the Narrow Frame Tilt & Turn meets and exceeds modern standards for air, water, thermal, and acoustic performance — all within an elegant, space-saving profile suitable for any residential or commercial application.

Features

  • Any RAL Classic Powder Coat Color, any Sherwin Williams color, and select stain colors

  • Availability To Match Colors to Other Materials

  • Narrower Bezels

  • German Components

  • Warm Edge Spacers

  • Argon Gas Filled Tempered Glass

  • Low-E Technology

  • 20 Year Transferable Warranty

  • 5 Layer Zero Damage Packaging

  • Integrated Drainage
  • Available For SDL’s or Grids Between The Glass
  • Available as single color or 2-tone (Exterior/Interior)

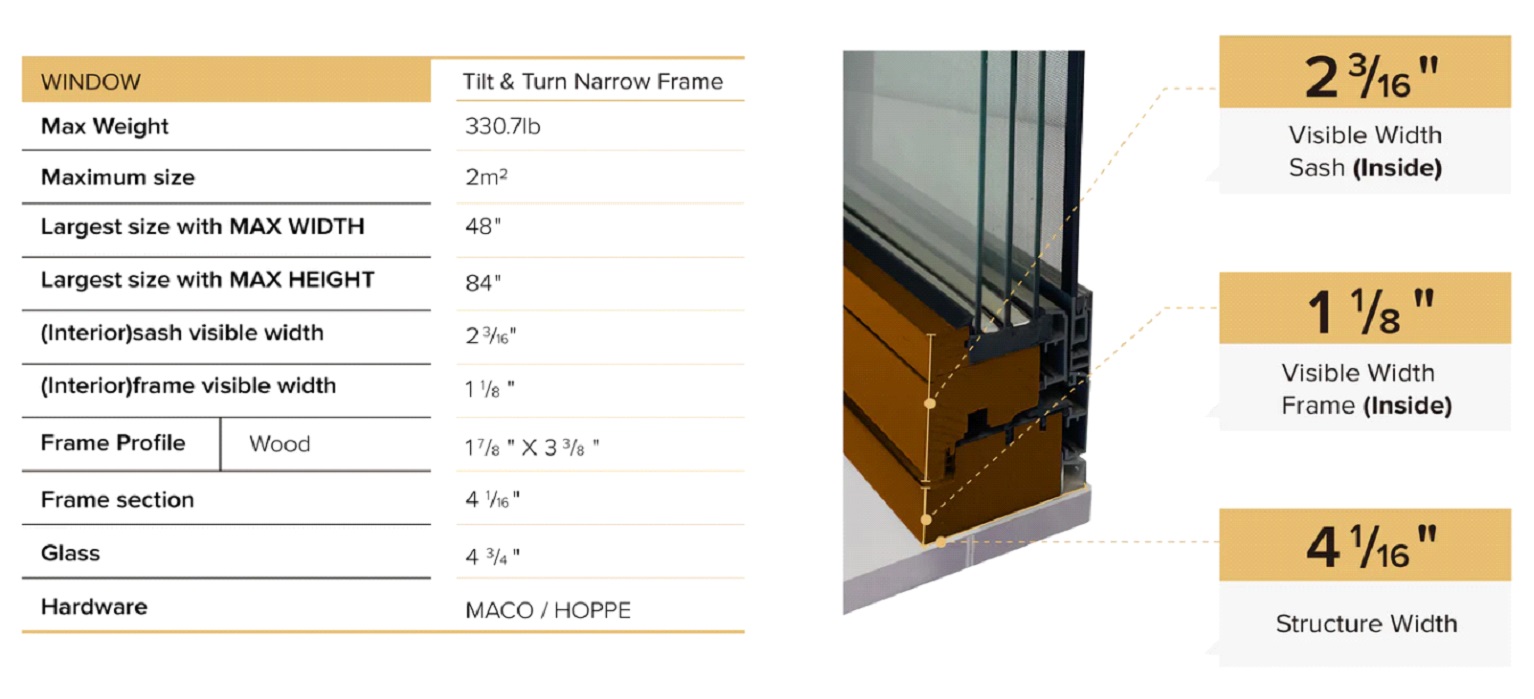

Performance

Model TrueOak Narrow Frame Tilt and Turn 103s



Glazing Options: Double-pane Triple-pane
Energy Ratings: U-Value SHGC U-Value SHGC
Narrow Frame Tilt & Turn 0.33 0.22 0.27 0.20

Frame: Aluminum w/ Thermal Break, 6060-T66 Profile,

≥2.0mm Thickness, 4-5/16″ Jamb Depth

Finish: Anodizing, Powder Coating and PVDF Optional

Glass: ◆Tempered Safety Glass

             ◆Ultra Clear Glass

             ◆Double-pane (1/4″ TG+1/2″ Air Space+1/4″ TG)

             ◆Argon Fill

Hardware: Continuous Hinge, Pull Handle, Lockset,

Top-mounted Door Closer

Weather Seals: EPDM Gasket and Brush Seal

Installation: New or Replacement

Additional Options:  Panic Bar, Bottom Auto Drop Seal, Electric Strike, integrated blinds

Grids: No Grids

Explore How TrueOak Fits Your Design

Our team can help you compare series options and determine the best fit for your project.
