TrueOak Picture

Where Design Meets Daylight

Flood Your Space With Light

The Win-Gate TrueOak series picture windows offer a combination of exceptional performance and flexibility. Our TrueOak windows are designed to facilitate unique architectural designs through the use of picture units. These products provide an abundance of natural daylight, full ventilation, and maximum energy efficiency while maintaining a custom architectural style.

Features

  • Any RAL Classic Powder Coat Color, any Sherwin Williams color, and select stain colors

  • Availability To Match Colors to Other Materials

  • German Components
  • German Handles
  • Warm Edge Spacers
  • Argon Gas Filled Tempered Glass (Dual or Triple Glazed)
  • Low-E Technology

  • 20 Year Transferable Warranty

  • 5 Layer Zero Damage Packaging

  • Hidden Integrated Drainage

  • Available For SDL’s or Grids Between The Glass
  • Available as single color or 2-tone (Exterior/Interior)

Performance

Model TrueOak e80s Fixed

Glazing Options: Double-pane Triple-pane
Energy Ratings: U-Value SHGC U-Value SHGC
Picture Window 0.30 0.25 0.24 0.23
Tilt & Turn Window 0.31 0.22 0.27 0.21

CW-PG50-1250x1850mm (49.21×72.83 in) -Type DAW
DP: +2400/-2400 Pa (+50.13/-50.13 psf)
Water Test Pressure: 440Pa (9.19 psf)
Canadian Air Infiltration/Exfiltration: A3
Conforms to AAMA / WDMA / CSA 101/I.S.2/ A440-11 & CSA A440S1-17

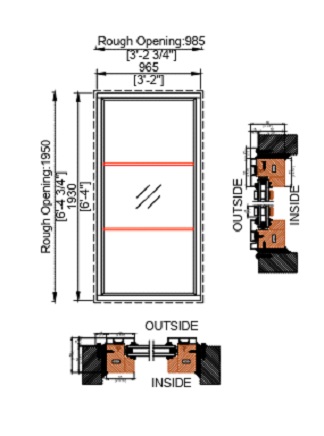

Frame: Aluminum w/ Thermal Break, 6060-T66 Profile,

≥2.0mm Thickness, 3-1/8″ Jamb Depth

Finish: Powder Coating-20 Years Warranty

Glass: ◆Tempered Safety Glass

              ◆Ultra Clear Glass

              ◆Double-pane (1/4″ TG+1/2″ Air Space+1/4″ TG), Triple-pane Optional

              ◆Argon Fill

              ◆Double-silver LowE Coating

              ◆Warm-edge Spacer

Hardware: Belgium Brand-Sobinco, Concealed Hinges, Multi-point,Locking System

Weather Seals: Three layers of EPDM Weather Stripping

Screen Options: Fixed Removable Screen, Retractable Screen

Installation: New or replacement available

Functionality: Picture Window, Tilt & Turn Window, Tilt-in Window

Grids: No Grid. GBG, SDL or Custom Grilles Optional

Explore How TrueOak Fits Your Design

Our team can help you compare series options and determine the best fit for your project.
