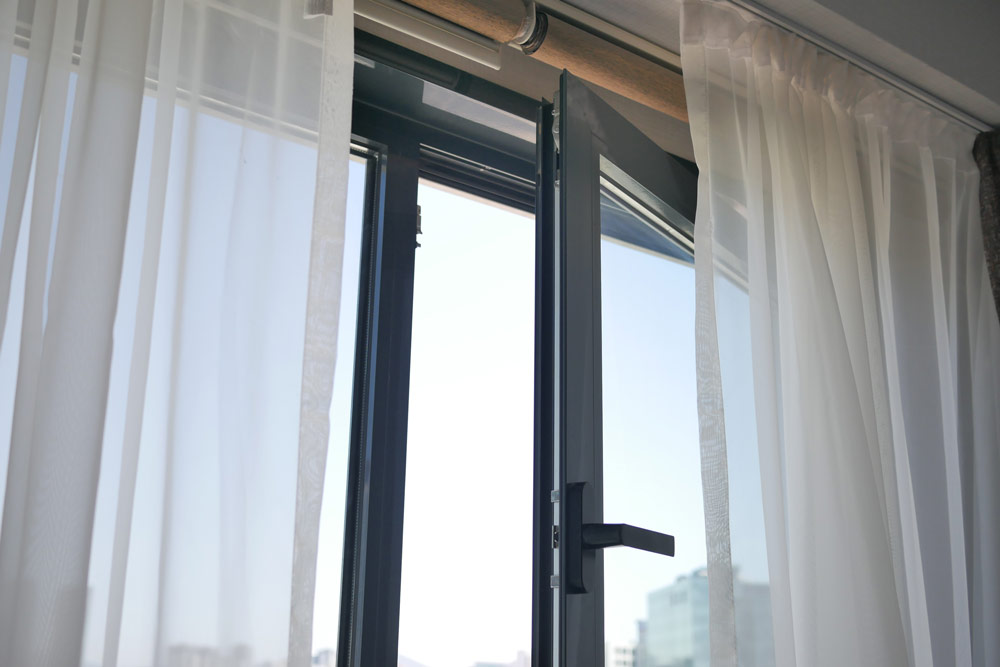

VistaSlim Tilt & Turn

Trusted Performance in Every Detail

A Go-To Choice for Architects and Homeowners

The Win-Gate VistaSlim series of tilt and turn windows offers an exceptional combination of performance, European-style operation, and aesthetic appeal. As our top-selling product, the VistaSlim series is an ideal choice for any architectural space.

Features

  • Any RAL Classic Powder Coat Color
  • Availability To Match Colors to Other Materials
  • Narrower Bezels
  • German Components

  • Baseless German and Belgium Handles

  • Warm Edge Spacers
  • Argon Gas Filled Tempered Glass (Dual or Triple Glazed)
  • Low-E Technology

  • 20 Year Transferable Warranty

  • 5 Layer Zero Damage Packaging

  • Flush Frame Sash
  • Integrated Drainage
  • Available For SDL’s or Grids Between The Glass
  • Available as single color or 2-tone (Exterior/Interior)

Performance

Model VistaSlim 80s Tilt & Turn

Glazing Options: Double-pane Triple-pane
Energy Ratings: U-Value SHGC U-Value SHGC
Picture Window 0.30 0.25 0.24 0.23
Tilt & Turn Window 0.31 0.22 0.27 0.21

CW-PG50-1250x1850mm (49.21×72.83 in) -Type DAW
DP: +2400/-2400 Pa (+50.13/-50.13 psf)
Water Test Pressure: 440Pa (9.19 psf)
Canadian Air Infiltration/Exfiltration: A3
Conforms to AAMA / WDMA / CSA 101/I.S.2/ A440-11 & CSA A440S1-17

Frame: Aluminum w/ Thermal Break, 6060-T66 Profile,

≥2.0mm Thickness, 3-1/8″ Jamb Depth

Finish: Powder Coating-20 Years Warranty

Glass:   ◆Tempered Safety Glass

              ◆Ultra Clear Glass

              ◆Double-pane (1/4″ TG+1/2″ Air Space+1/4″ TG), Triple-pane Optional

              ◆Argon Fill

              ◆Double-silver LowE Coating

              ◆Warm-edge Spacer

Hardware: Belgium Brand-Sobinco, Concealed Hinges, Multi-point,Locking System

Weather Seals: Three layers of EPDM Weather Stripping

Screen Options: Fixed Removable Screen, Retractable Screen

Installation: New or replacement available

Functionality: Picture Window, Tilt & Turn Window, Tilt-in Window

Grids: No Grid. GBG, SDL or Custom Grilles Optional

Explore How VistaSlim Fits Your Design

Our team can help you compare series options and determine the best fit for your project.
